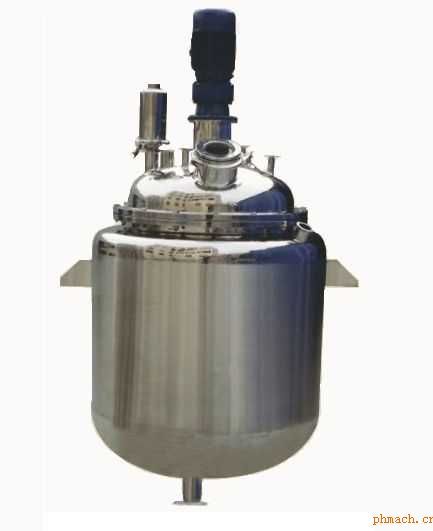

                                結晶罐 Crystal Tank

1、概述：

    結晶罐是用于待結晶物料的濃度達到了過飽和的高濃度，而且該物料的溶解度隨著溫度的變化而變化的，物料在罐內在夾層冷凍水或冷媒水冷卻急劇降溫的結晶設備，罐體內高精度拋光，以及罐體內清洗無死角的要求來滿足工藝使用條件，其它關鍵環節在于夾層面積的大小，攪拌器的結構形式和物料出口形式等。廣泛用于制藥、食品、化工、生物等工業中物料攪拌混合，降溫冷凍，成品結晶。 本公司對不同的工藝要求，具有豐富的設計和制造經驗，所生產的設備完全符合GMP驗證要求。

2、設備結構：

    結晶罐采用進口316L或304不銹鋼制作，內壁采用電解鏡面或機械拋光，外壁采用304全焊接結構保溫，外表面采用鏡面或亞光處理。結晶罐上安裝0.2μm疏水性通氣過濾器。結晶罐能承受121℃高溫滅菌消毒，配備衛生級壓力表。

罐體對外連接口采用衛生快開接頭，帶有溫度監控裝置、視鏡、清洗球及氮氣進口、PH計接口、溫度計接口等，攪拌電機連接口軸的密封采用特殊的衛生級機械密封，以確保物料不受污染。結晶罐可采用變頻調速裝置，攪拌軸轉速調節范圍大。

3、設備特點：

1）、設備選用中空螺帶式攪拌結構可增大換熱面積，提高換熱效率，提升結晶產能，且進料出料方便；

2）、設備夾套內可通入蒸汽或冷媒以使物料處于*佳溫度下，具有效率高，操作方便等優點；

3）、設備上安裝 0.2 μm 疏水性通氣過濾器，罐內能承受高溫蒸汽滅菌消毒，配備衛生壓力表；

4）、設備罐體外采用衛生級快開接口，配備有溫度計，視鏡、燈鏡、清洗球及氮氣進口等；

5）、設備密封采用特殊的衛生級機械密封，確保物料不受污染；

6）、設備采用無級調速裝置，攪拌軸轉速調節范圍大，攪拌均勻，結晶體均勻；

7）、設備出料采用氣動罐底閥，可以保證各種晶漿出料順暢無阻。

1, overview:

The crystallizing tank is used for the concentration to be crystallized material reached high levels of supersaturation, and the solubility of the material with the temperature changes, the material in the inner interlayer tank crystallization equipment of chilled water or chilled water cooling and rapid cooling tank, high precision polishing, and clean the tank body to meet the requirements of the process conditions of use, the other key is the mezzanine area size, structure and material outlet stirrer form. Widely used in pharmaceutical, food, chemical, biological and other industries, mixing, mixing, cooling, freezing, crystallization of finished products. Our company has rich experience in design and manufacturing for different process requirements, and the equipment produced is in full compliance with the requirements of GMP certification.

2, equipment structure:

The crystallizer is made of imported 316L or 304 stainless steel, and the inner wall adopts electrolytic mirror surface or mechanical polishing. The outer wall adopts 304 full welded structure to keep warm, and the outer surface is mirror or matt. A 0.2 M hydrophobic vent filter is installed on the crystallizer. The crystallizing pot can withstand sterilization at 121 DEG C, and is equipped with a sanitary pressure gauge.

The external connector adopts quick open joint health, with the temperature control device, mirror, cleaning ball and nitrogen inlet, pH, thermometer interface interface, motor shaft sealing stirring connector adopts sanitary mechanical special sealing, to ensure that the material is not contaminated. The crystallizer can adopt frequency conversion speed regulating device, and the speed range of the stirring shaft is large.

3, equipment features:

1) the equipment adopts the hollow spiral ribbon mixing structure, which can increase the heat exchange area, increase the heat exchange efficiency, improve the crystallization capacity, and the material is convenient to discharge;

2) the steam or cooling medium can be used in the equipment jacket, so that the material is at the optimum temperature, and the utility model has the advantages of high efficiency and convenient operation;

3) the equipment is equipped with 0.2 M hydrophobic filter, the tank can withstand high temperature steam sterilization, and equipped with sanitary pressure gauge;

4) the device can be used as a sanitary quick opening interface in vitro. It is equipped with thermometer, mirror, lamp mirror, cleaning ball and nitrogen inlet etc.;

5) the sealing of the equipment adopts special sanitary mechanical seals to ensure the material is free from pollution;

6) the equipment adopts stepless speed regulation device, the speed range of the stirring shaft is large, the stirring is even, and the crystal body is even;

7), equipment dircharging pneumatic tank bottom valve, can guarantee all kinds of crystal slurry discharge smoothly.

4、設備規格：Parameter
